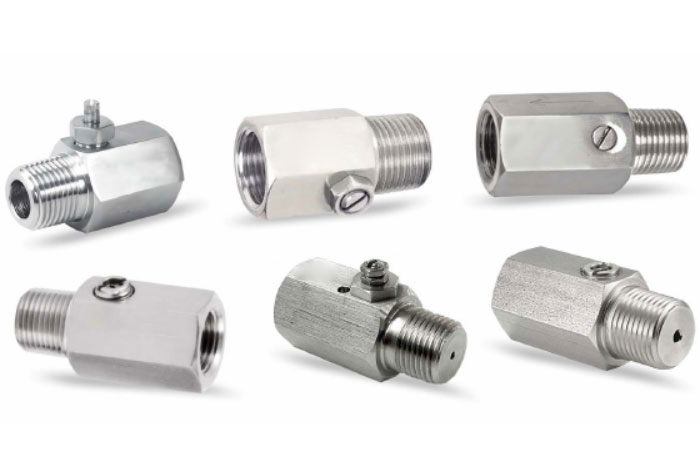

Snubber
Snubbers also known as Dampeners are used with pressure guages, where there are sudden shocks & impulses in process lines. Snubbers are used to considerably reduce the impulses & hence makes the guage reading easier. Snubbers also helps in increasing the life of guage.
The damping is achieved by the adjustment of a needle tip that restricts the flow & therefore protects the pressure gauge against pulsations. A unique feature of this design is that the adjustment to the damping can be made after installation in the system.
FEatures
- Available in S316, SS304, Brass.
- Available in 1/4″, 3/8″ & 1/2″ Connections.
- Variety of end connections include NPT, ISO/BSP Threads.
- Compact Design.
- Teflon or Viton O-ring.
- Working Pressure Upto 6000 psi.
- Operating temperature up to 100 deg. Centigrade.
- 100% Factory Tested.
